AIMA

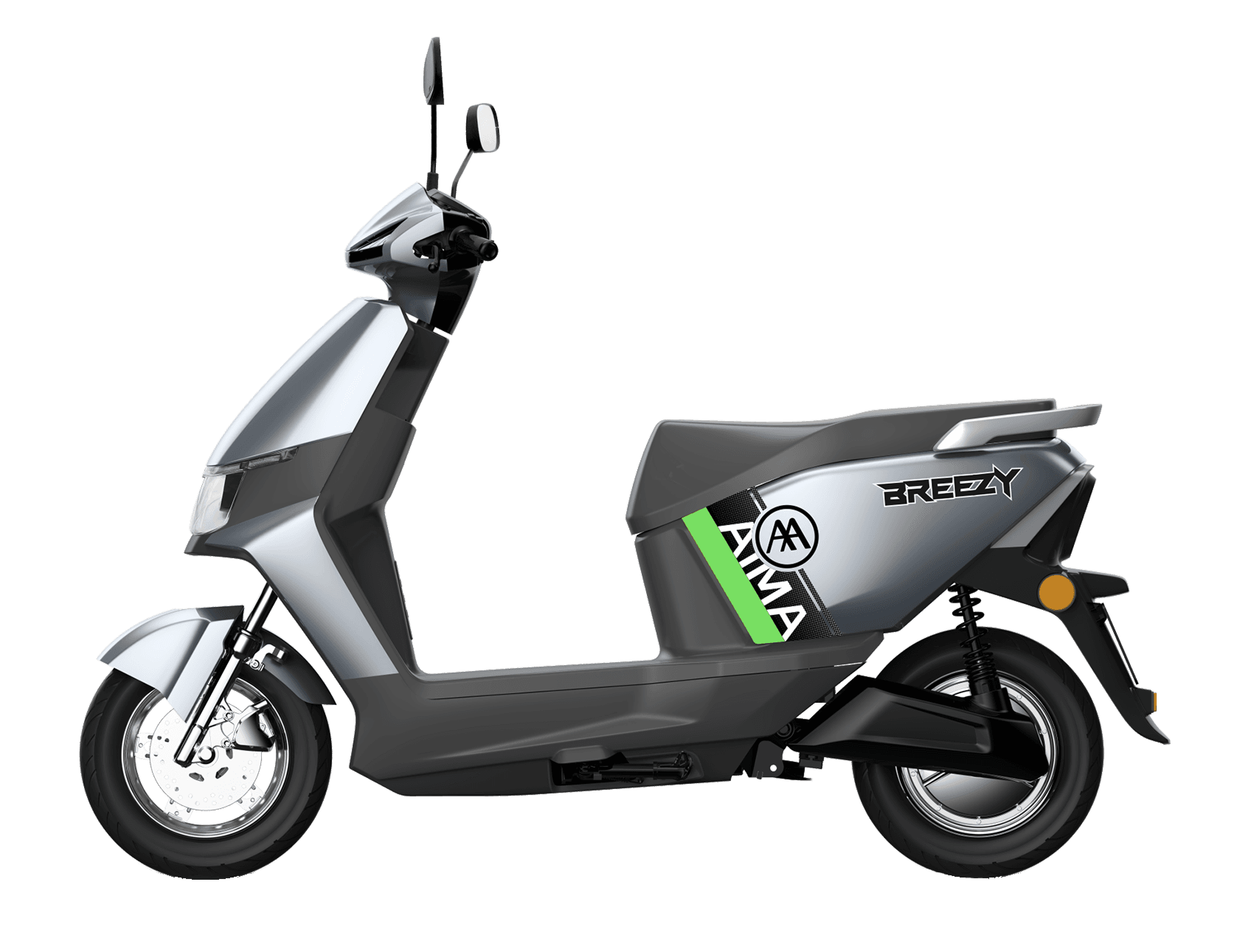

AIMA Breezy

Easy & Breezy Partner


Basic info


Dimensions (L x W x H)1760x700x1110
Weight96.8KG (containing batteries)
Seat Height740mm
Seat Length650mm
Pedal Length390mm
Wheel Base1250mm
Ground Clearance135mm
Weight Supported150KG

Motor


Motor TypeHub Motor
Rated Power800W
Peak Power1580W
Max. Torque98N.m
Climbing Angle11°
Max. Speed43km/h

Battery


Battery TypeGRAPHENE BATTERY
Battery Voltage72V
Battery Capacity26AH
Max. Range68(WMTC)
Battery Weight43.2±0.5KG
Charger Output Current5A
Charging Time6-7h

TIRES & BRAKES


Tire SizeTUBELESS 3.0-10
Shock AbsorberF&R: Hydraulic
Brake (Front/Rear)F: Disc/R:Drum

Lighting System


HeadlightLED
Tail LightLED
Braking LightLED

Others


SpeedometerLED
Frame MaterialQ195
Storage Space26L
