AIMA

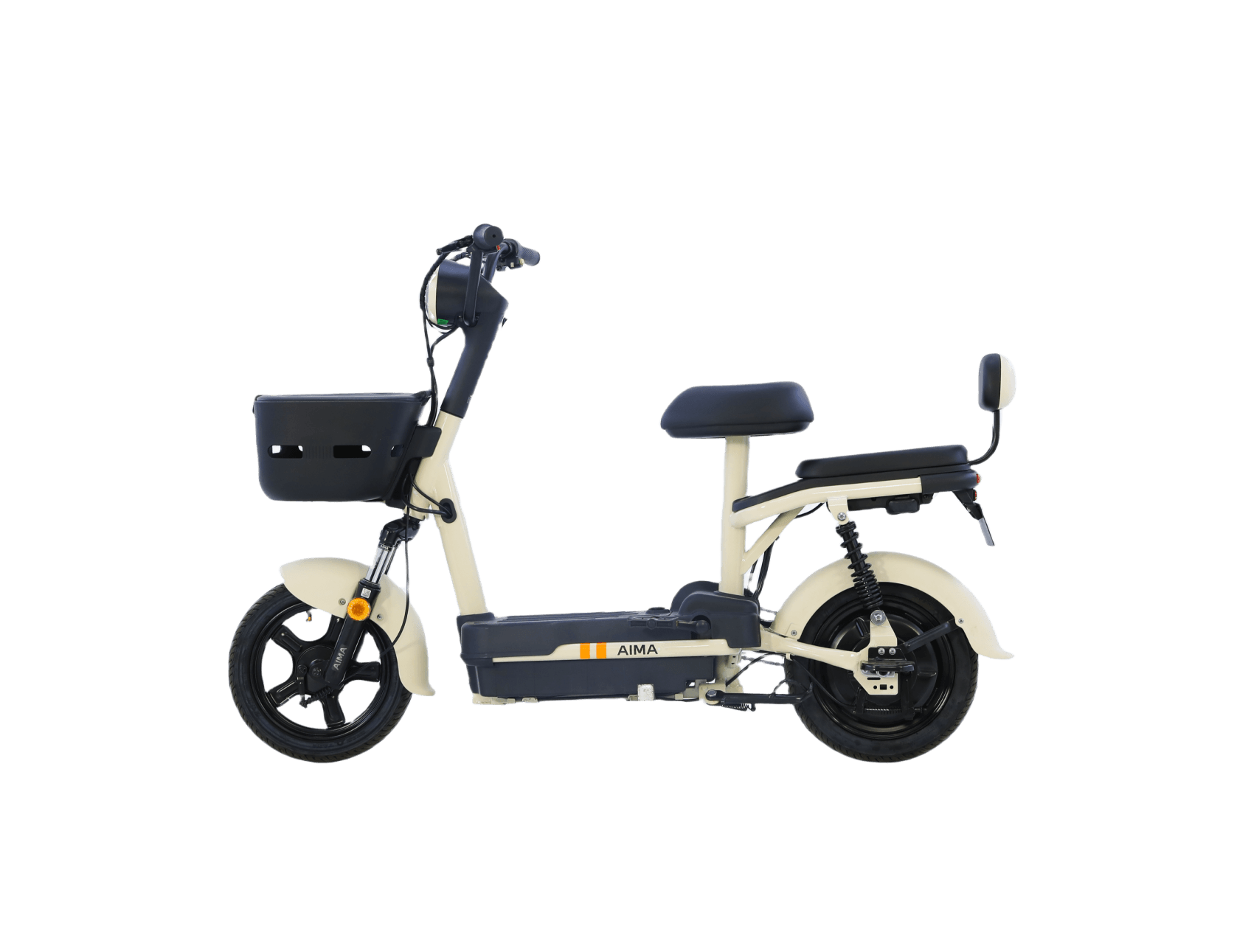

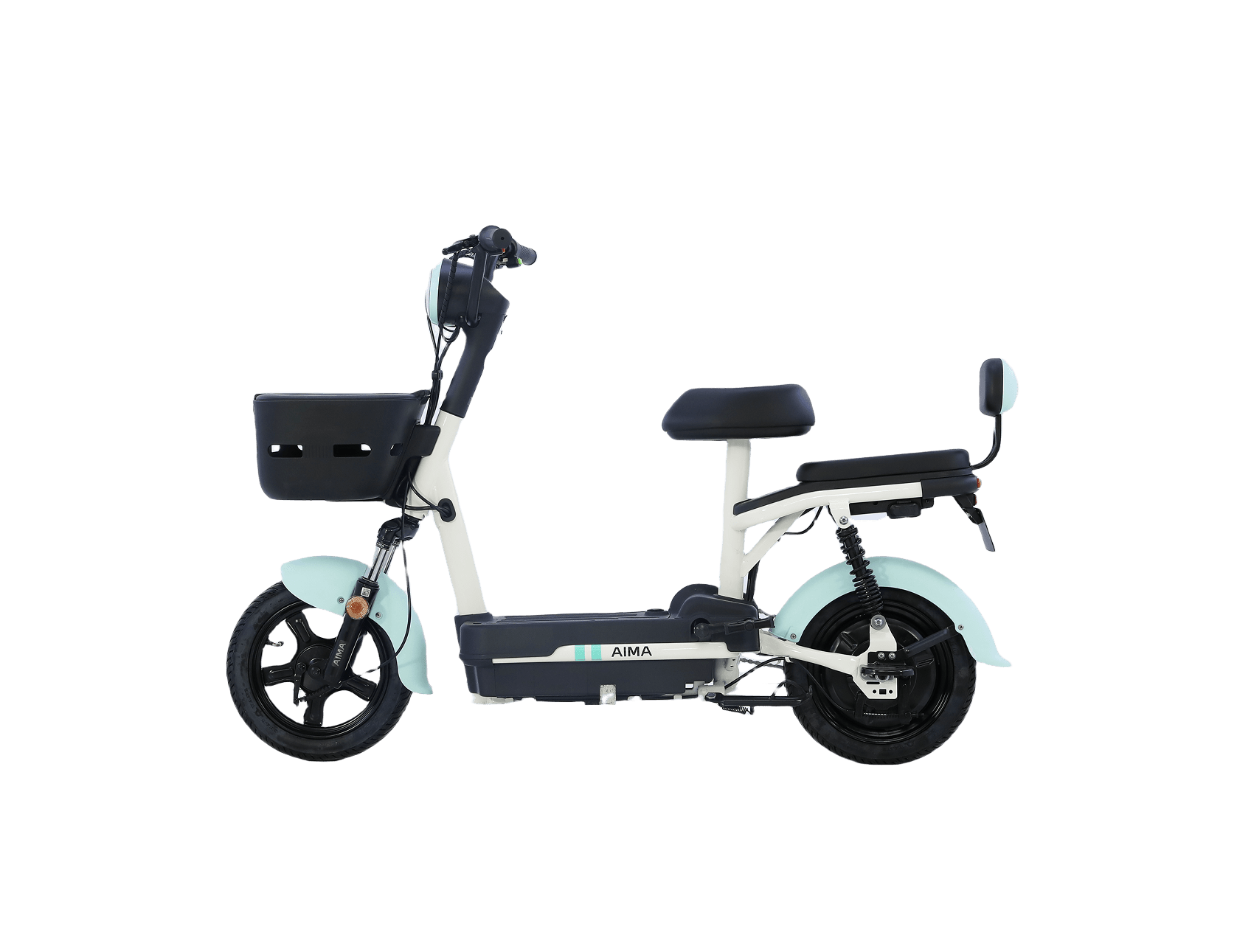

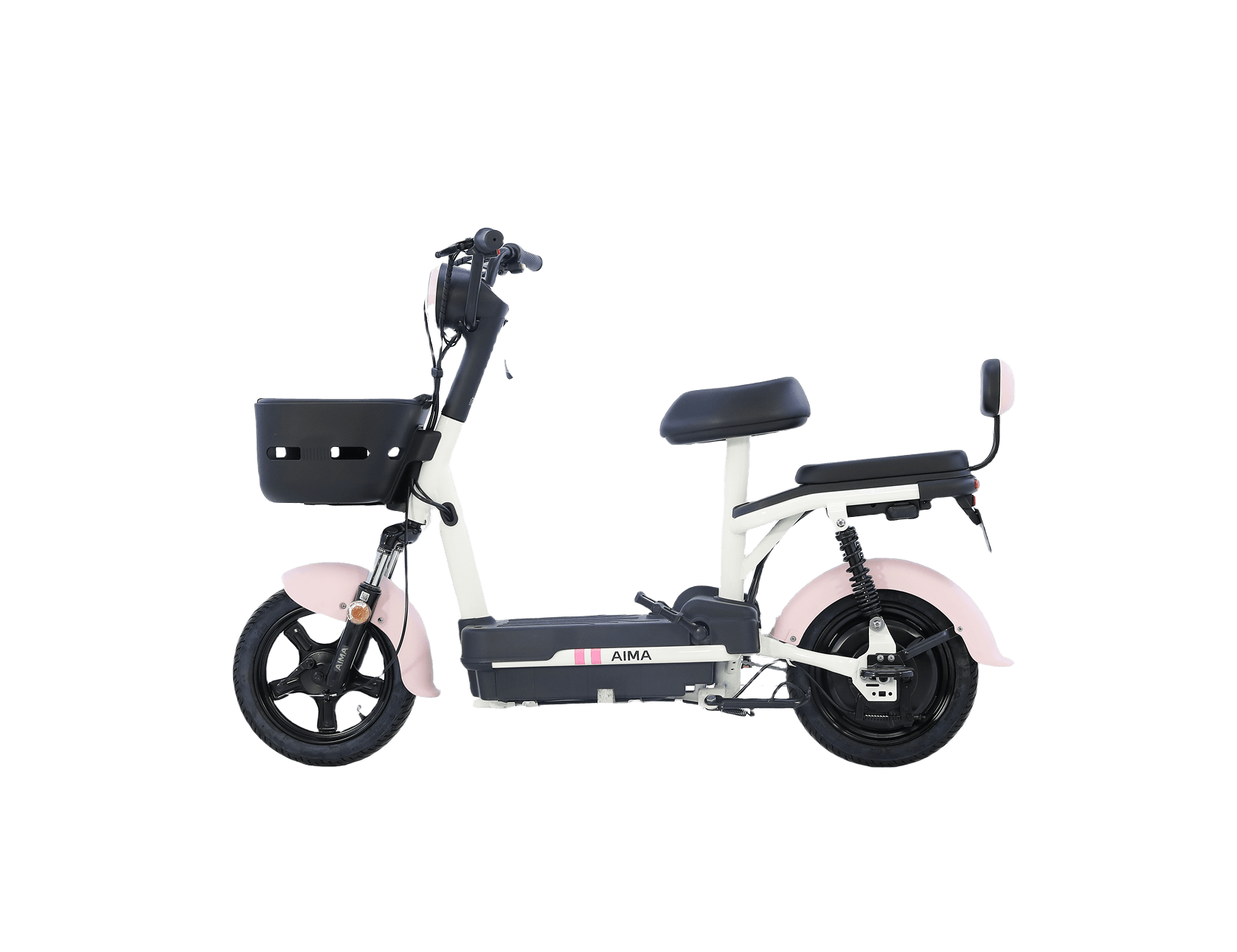

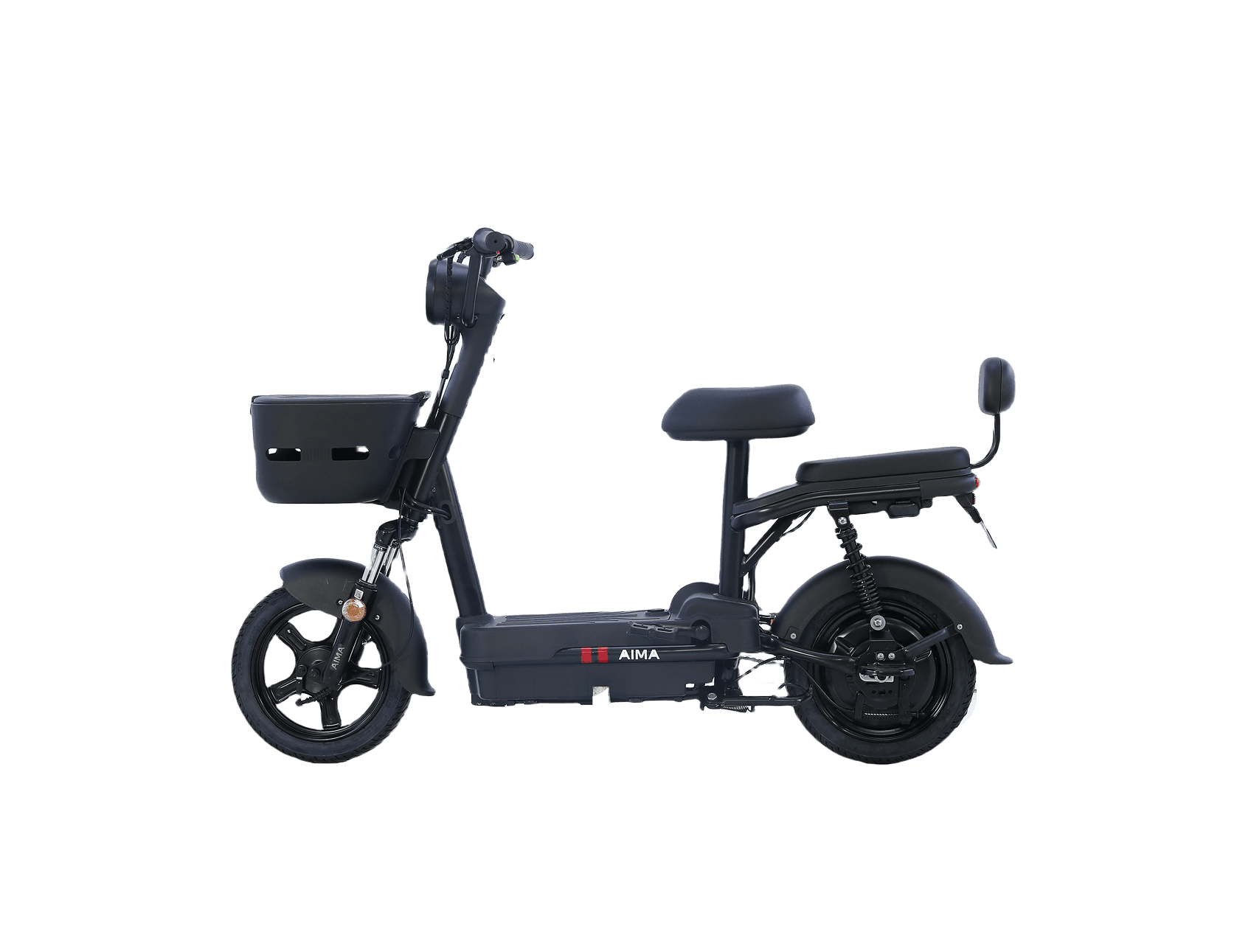

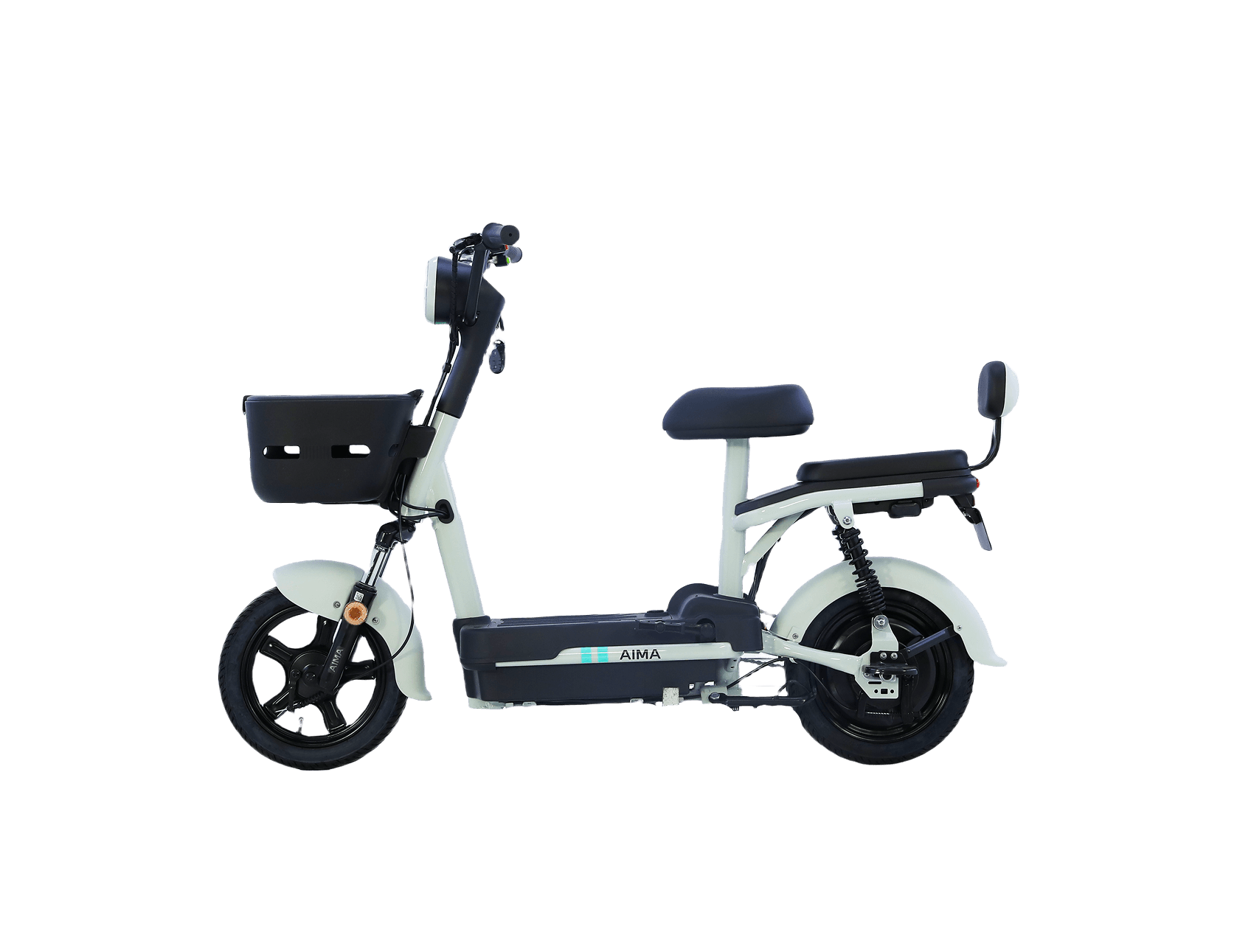

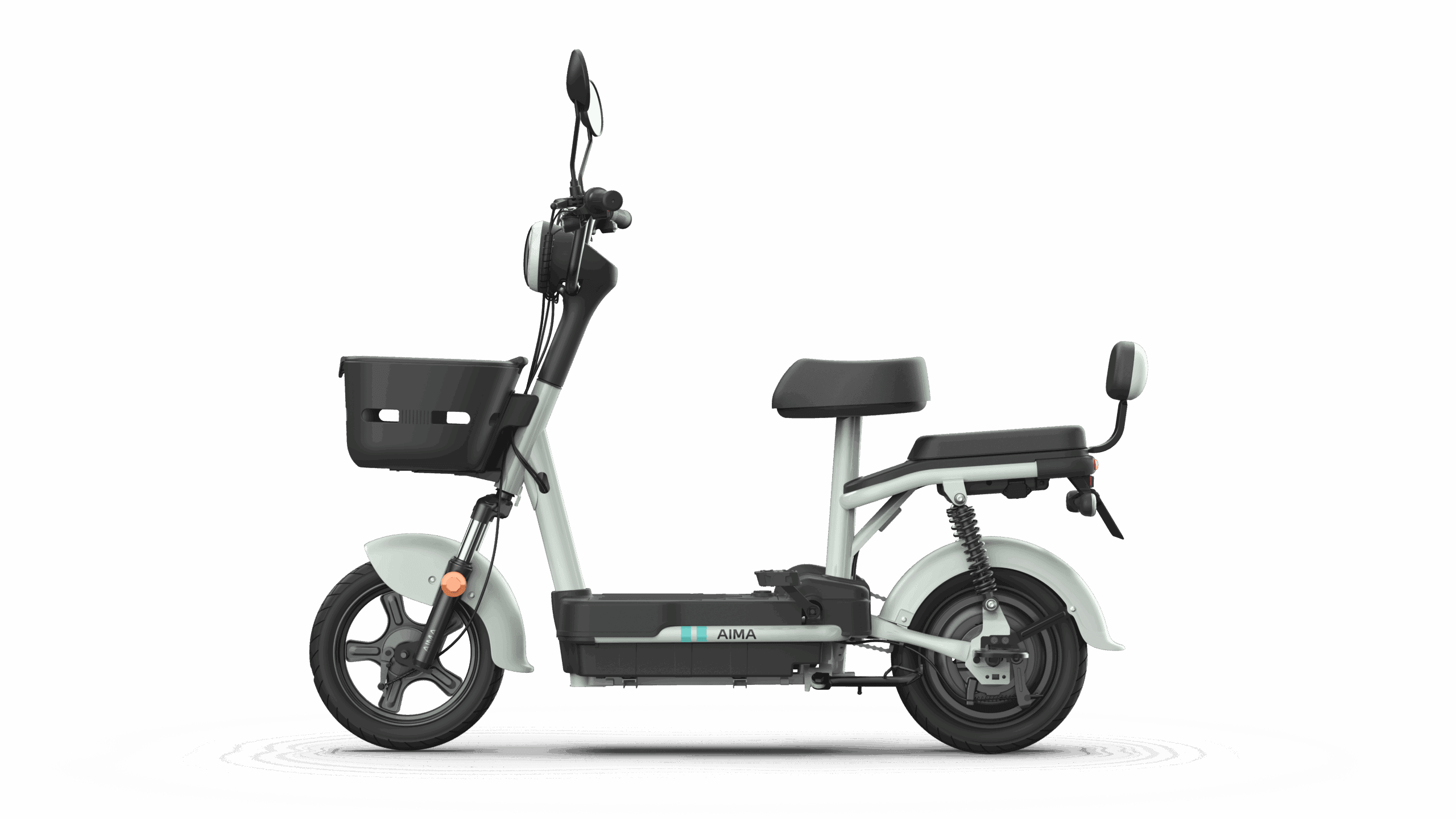

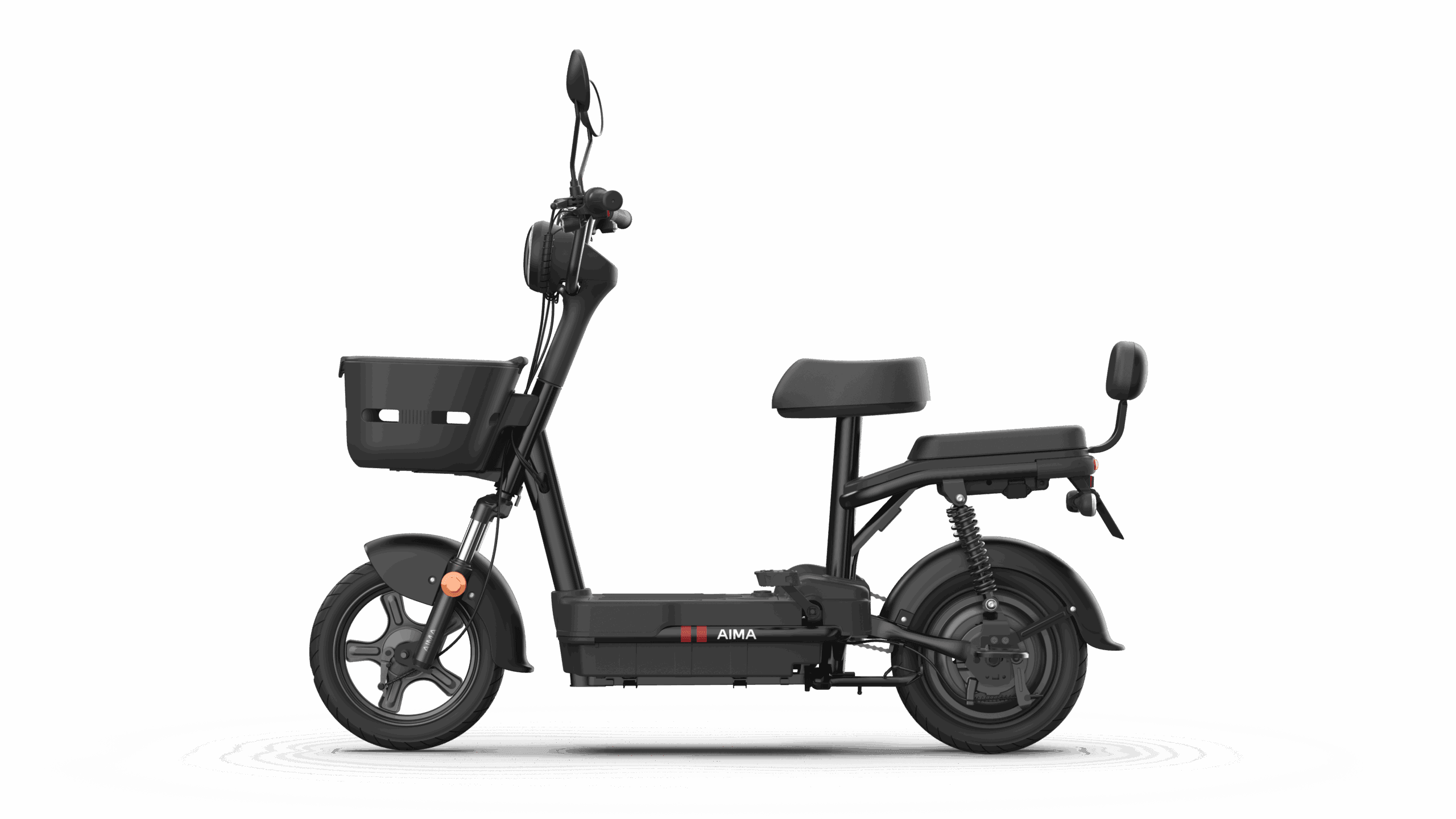

AIMA JoyBean

Start an Easy and Secure Drive


Basic info


Dimensions (L x W x H)1485x625x1035
Weight49kg (containing batteries)
Seat Height715±10mm
Seat Length260mm
Pedal Length352mm
Wheel Base1050mm
Ground Clearance120mm
Weight Supported75kg

Motor


Motor TypeHub Motor
Rated Power350W
Peak Power707W
Max. Torque42 N.m
Climbing Angle
Max. Speed29KM/H

Battery


Battery TypeGRAPHENE BATTERY
Battery Voltage48V
Battery Capacity13AH
Max. Range45km
Battery Weight16.8kg
Charger Output Current3A
Charging Time4-5h

TIRES & BRAKES


Tire Size14X2.125 4PR
Shock AbsorberF&R: Mechanic
Brake (Front/Rear)F: Drum Brakes/R:Drum Brakes

Lighting System


HeadlightLED
Tail LightLED
Braking lightLED

Others


SpeedometerLED
Frame MaterialQ195
Storagefront basket SpaceFront basket
